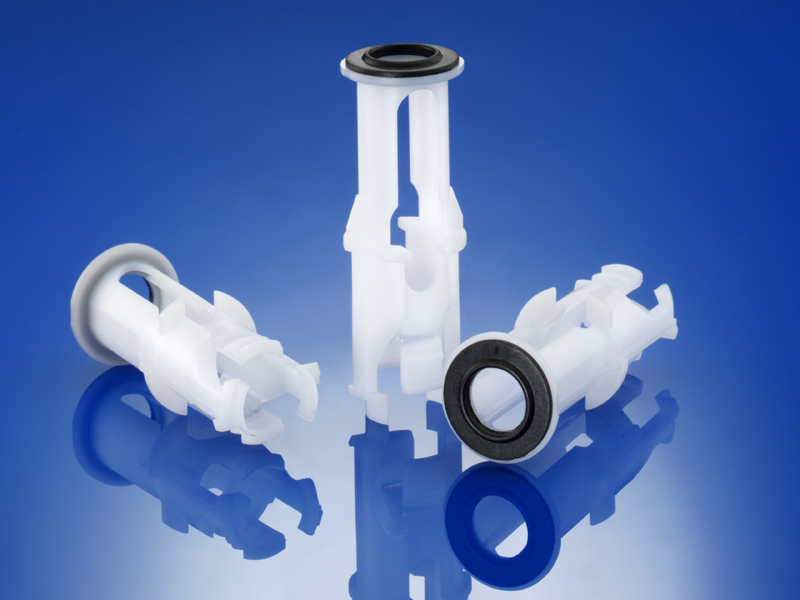

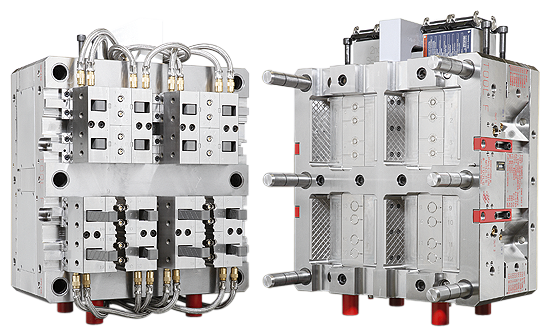

8+8 impression twin-shot hot runner tool - To produce syringe carrier damper

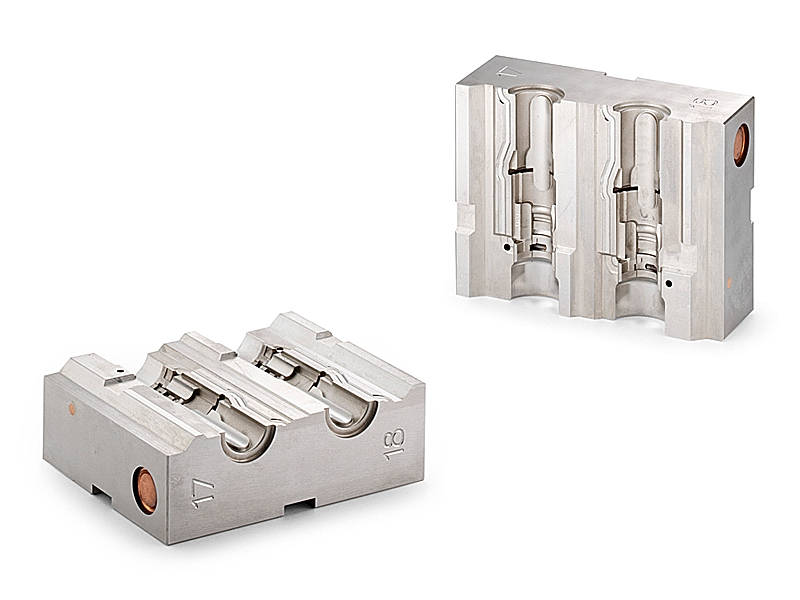

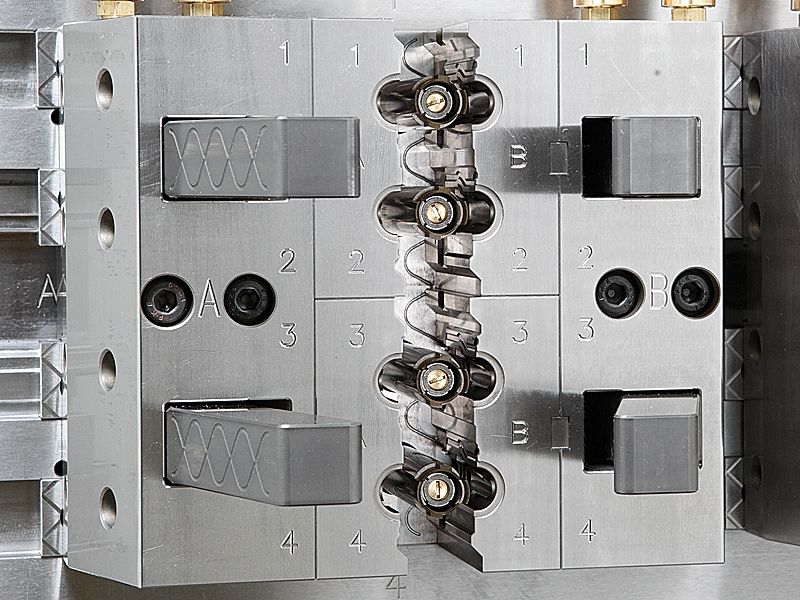

The ejection half of this tool has four identical sets of vertical splits and is bolted to the moulding machine’s rotary table. The fixed half of the tool has two 8 drop Gunther hot runner systems; one feeding the first shot (top of tool) and the other feeding the second shot (bottom of tool). The ejection system opens the bottom two sets of splits via angle cams and finally sleeve ejects the components.

Dimensions 546 x 526 x 578mm
Weight 1,120 Kilos
Material 1st shot Hostaform C1303 / 2nd shot TPE
Press KM 110 / 130CXZ
